Overview

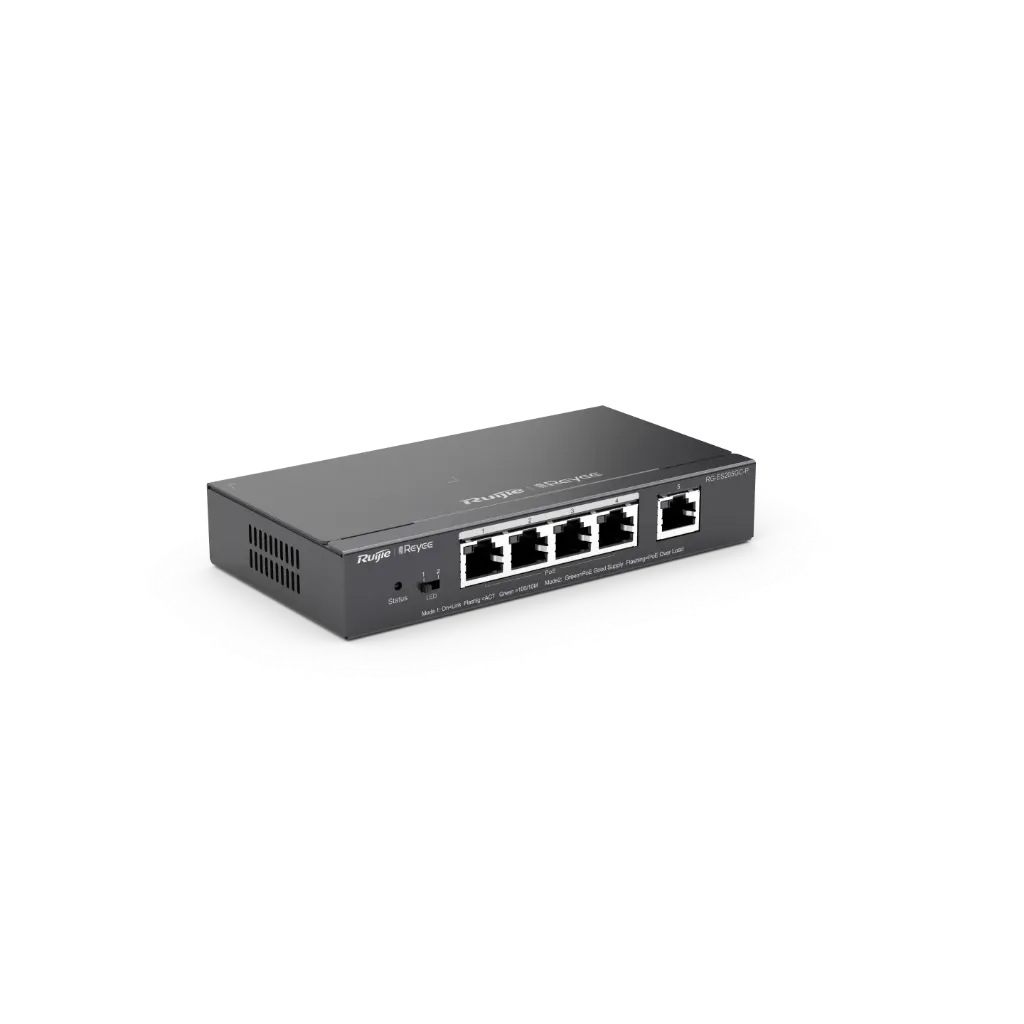

The Ruijie Reyee RG-ES205GC-P is a high-performance 5-port Gigabit Smart Cloud Managed Switch designed for small-to-medium business networks, IP surveillance systems, and modern office setups. Featuring 4 Power over Ethernet (PoE+) ports and a total power budget of 54W, it delivers seamless data and power transmission for IP cameras, wireless access points, and IP phones. Compact and fanless, this switch combines silent operation with cloud-managed convenience for effortless network setup and monitoring.
Key Features
High-Speed Gigabit Ports: Equipped with 5 x 10/100/1000 Mbps RJ45 ports for uninterrupted network throughput.
PoE+ Power Delivery: 4 x IEEE 802.3af/at PoE+ ports provide up to 30W per port (54W total budget) to power connected network devices.
Smart Cloud Management: Remote configuration, status monitoring, port reboots, and network topology detection via the free Ruijie Cloud app.
Surveillance-Optimized: Automatic IP camera recognition and built-in loop prevention ensure continuous transmission for security systems.
Fanless & Compact Design: Silent operation suitable for office desktops, wall mounting, or compact enclosure installations.
Industrial-Grade Reliability: Robust metal enclosure with 4 kV surge protection for reliable long-term performance.
Technical Specifications
| Feature | Specification |
| Model | RG-ES205GC-P |
| Total Ports | 5 x 10/100/1000 Base-T RJ45 |
| PoE Ports | 4 x 802.3af/at PoE+ Ports |
| PoE Budget | 54 W |
| Switching Capacity | 10 Gbps |
| Forwarding Rate | 7.44 Mpps |
| MAC Address Table | 2,000 entries |
| Surge Protection | 4 kV |
| Management | Ruijie Cloud App, Web GUI |
| Cooling | Fanless (Silent) |
| Dimensions (W x D x H) | 148 mm x 78 mm x 26 mm |
| Weight | 0.30 kg |
