Overview

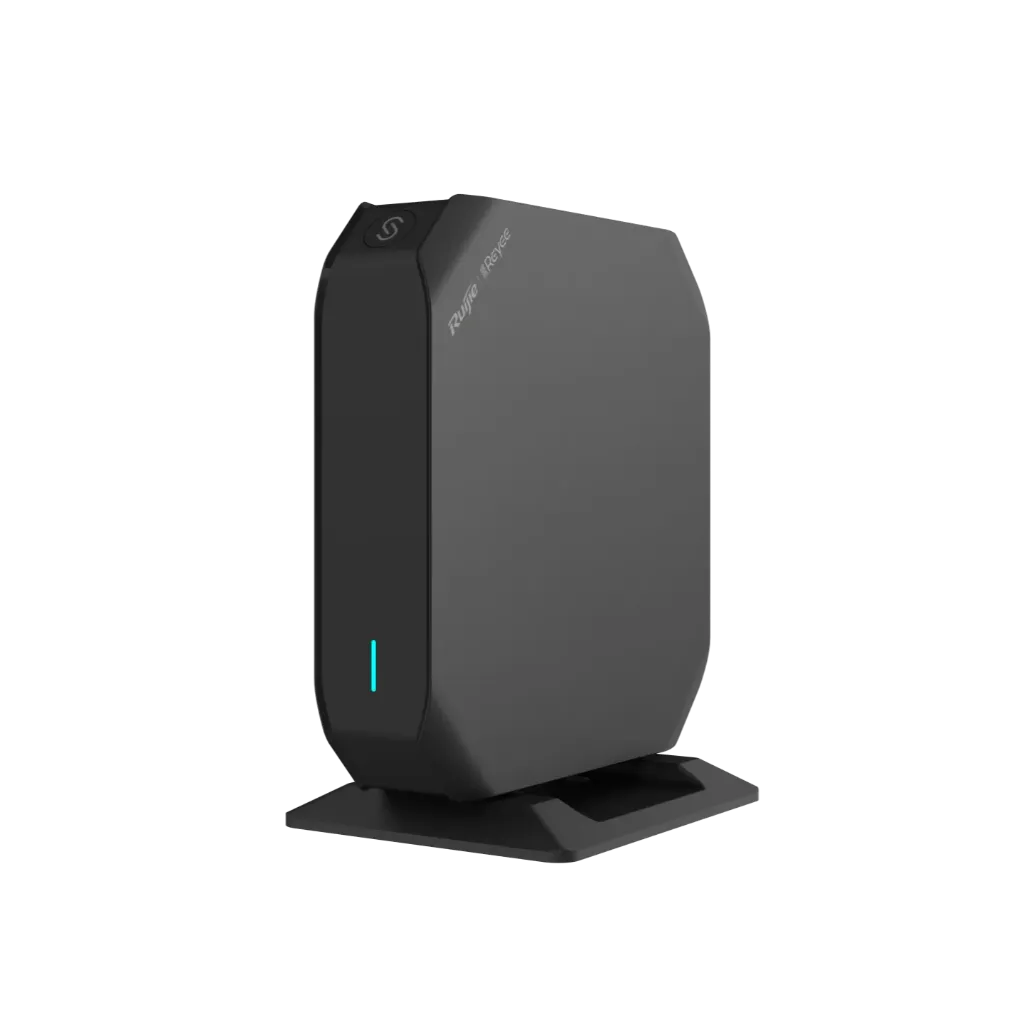

The Ruijie Reyee RG-EG105GW(T) is an all-in-one wireless gateway router designed for small business offices, retail stores, villas, and restaurant environments. Combining high-speed AC1200 Wi-Fi, multi-WAN routing capabilities, and enterprise security features, it provides seamless wireless coverage and robust wired network performance. Featuring hidden high-efficiency internal antennas, support for up to 100 concurrent users, and effortless setup via Reyee Mesh and the free Ruijie Cloud app, it delivers reliable connectivity in a sleek, space-saving design.
Key Highlights
High-Speed Dual-Band Wi-Fi 5: Delivers up to 1267 Mbps combined wireless speeds (867 Mbps on 5 GHz + 400 Mbps on 2.4 GHz).
Multi-WAN & ISP Load Balancing: Features 5 Gigabit Ethernet ports with support for up to 2 WAN ports, bandwidth aggregation, and active/standby failover.
Optimized Internal Antennas: Enterprise-grade omnidirectional internal antennas ensure wide coverage without bulky external clutter.
High Client Density: Powered by a dual-core processor supporting up to 100 concurrent clients (or 60 recommended wireless users).
Integrated Mesh & AC Features: Built-in Access Controller (AC) functionality to manage Reyee APs and Reyee Mesh support for easy wireless expansion.
Free Ruijie Cloud Management: Centralized remote configuration, topology mapping, network optimization, and mobile app monitoring with zero license fees.
Technical Specifications
| Feature | Specification |
| Model | RG-EG105GW(T) |
| Wireless Standard | Wi-Fi 5 (IEEE 802.11ac Wave 2 / a/b/g/n) |
| Max Wireless Speed | Up to 1267 Mbps (5 GHz: 867 Mbps | 2.4 GHz: 400 Mbps) |
| Antennas | Internal High-Gain Omnidirectional Antennas |
| CPU / RAM / Flash | Dual-Core 880 MHz CPU | 128 MB RAM | 16 MB Flash |
| Fixed Ethernet Interfaces | 5 X 10/100/1000Base-T Gigabit RJ45 Ports |
| Port Breakdown | 1 X WAN, 1 X LAN, 3 X LAN/WAN switchable |
| Recommended Clients | Up to 100 Concurrent Users (60 Wireless Users) |
| Max Concurrent Sessions | 20,000 |
| Multi-WAN Capabilities | Up to 2 WAN ports with Intelligent Load Balancing & Failover |
| VPN Support | IPsec, L2TP, PPTP, OpenVPN |
| Managed AP Capacity | Up to 32 Ruijie Reyee Wireless Access Points |
| Power Supply & Consumption | 12V DC External Adapter | Max Power Consumption 15W |
| Dimensions & Weight | 250 X 170 X 42mm (9.84" X 6.69" X 1.65") | 0.5 kg |
