Overview

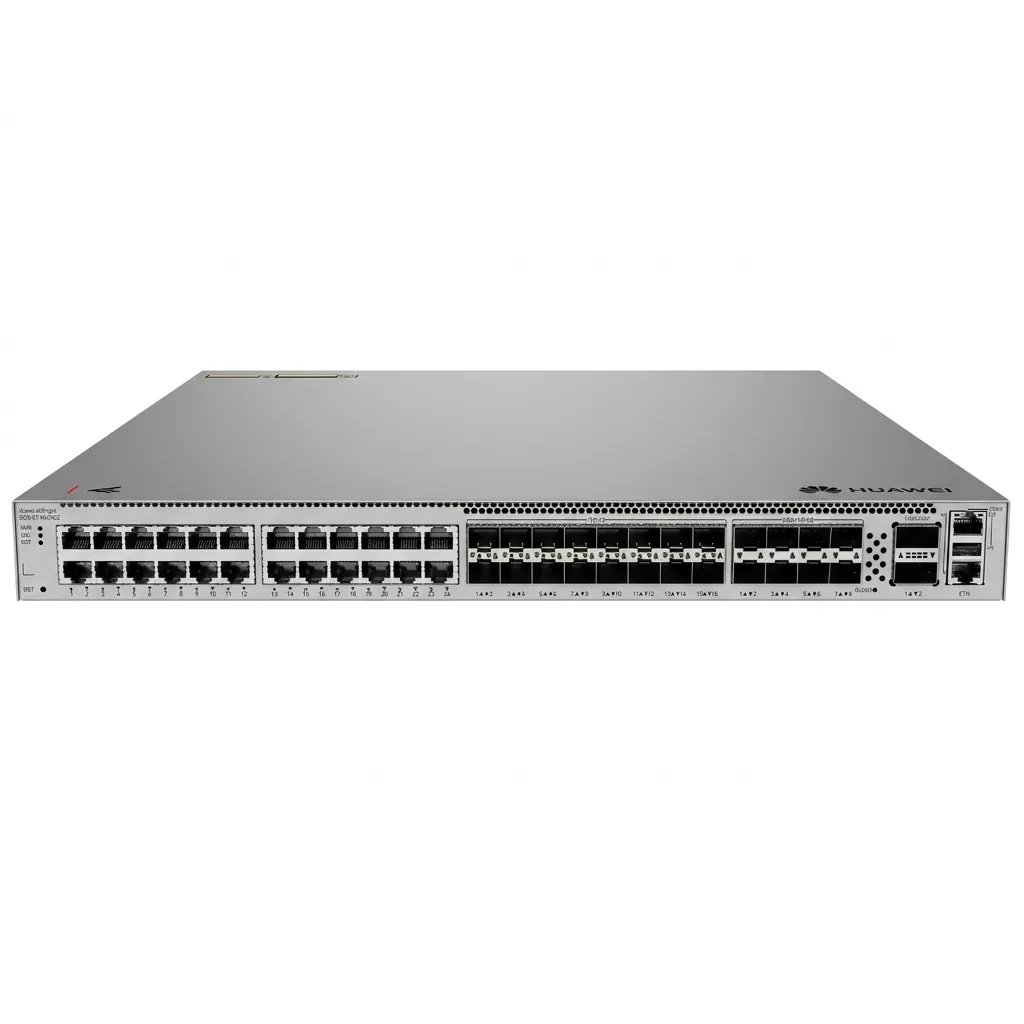

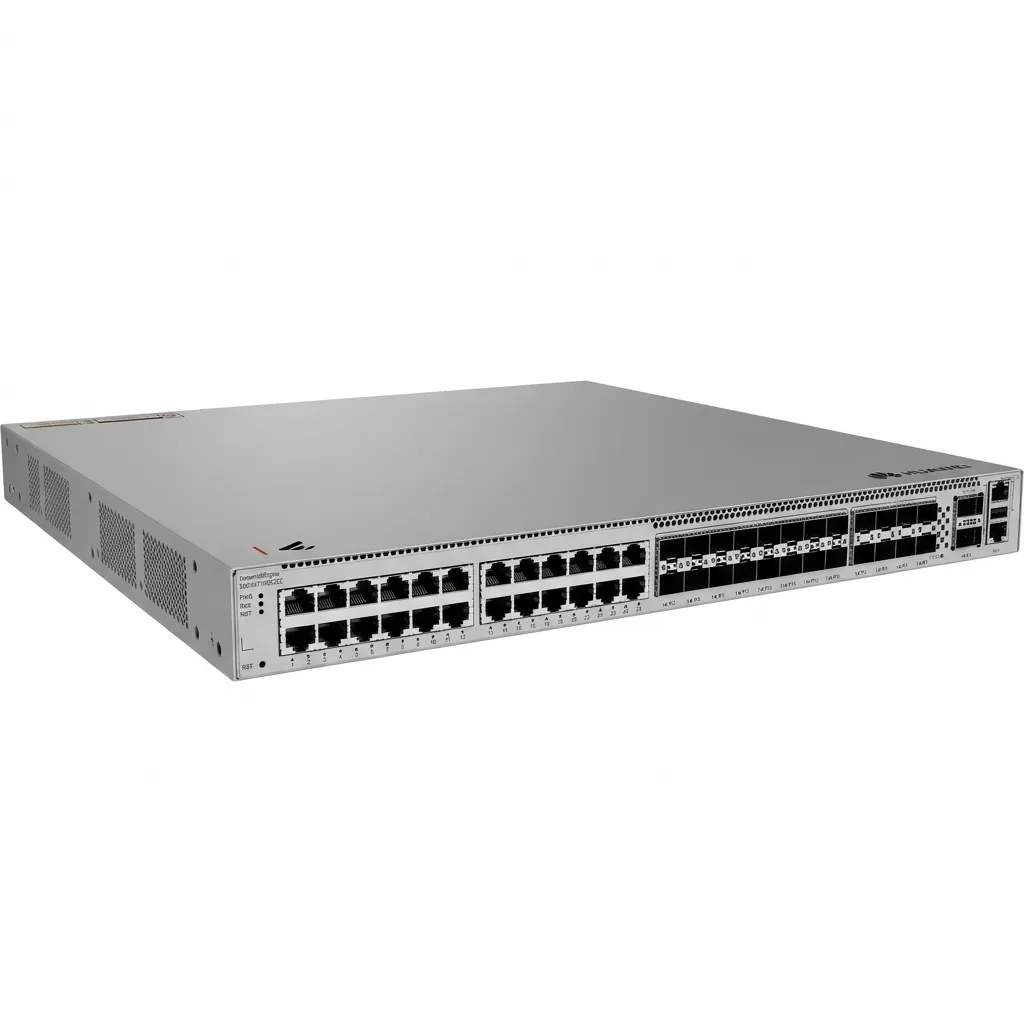

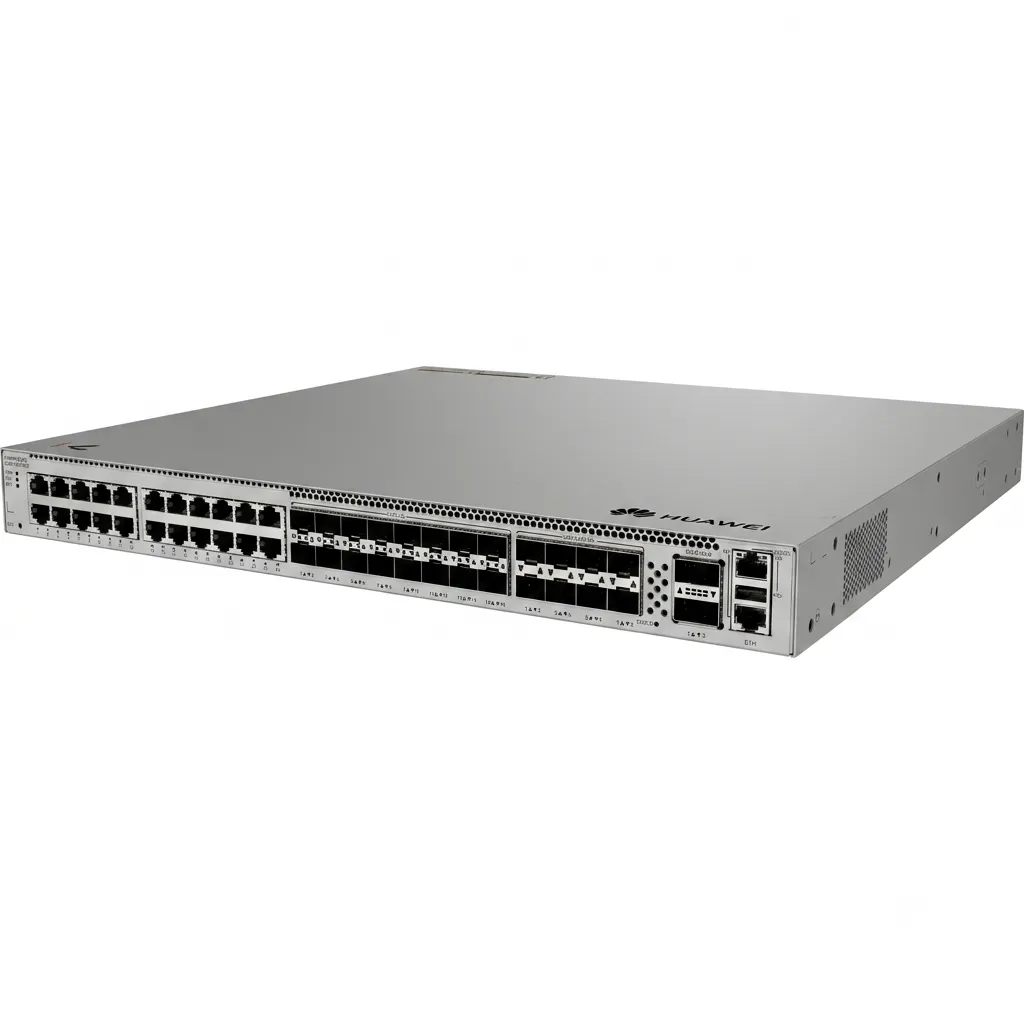

The Huawei eKitEngine S620-24T16X8Y2CZ is an enhanced Layer 3 core and aggregation switch engineered for enterprise networks, campus cores, and large-scale deployments. It delivers high switching capacity, multi-rate optical/electrical interface density, and advanced Layer 3 routing capabilities.
Key Features
Ultra-High Bandwidth: Features high-density 10G SFP+, 25G SFP28, and 100G QSFP28 uplink interfaces.
High Availability & Stacking: Supports Huawei iStacking (up to 9 units), ERPS ring protection (ITU-T G.8032), and VRRP.
Flexible Expansion & Redundancy: Includes 1 reserved expansion slot and dual 1+1 hot-swappable AC/DC power supply slots.
Enterprise Management: Supports Huawei Smart Network Controller (SNC), SNMP, CLI, Web GUI, and SSHv2.
Technical Specifications
| Feature | Official Specification |
| Model | Huawei eKitEngine S620-24T16X8Y2CZ (Part: 98012536) |
| Switch Category | Layer 3 Core / Aggregation Switch |

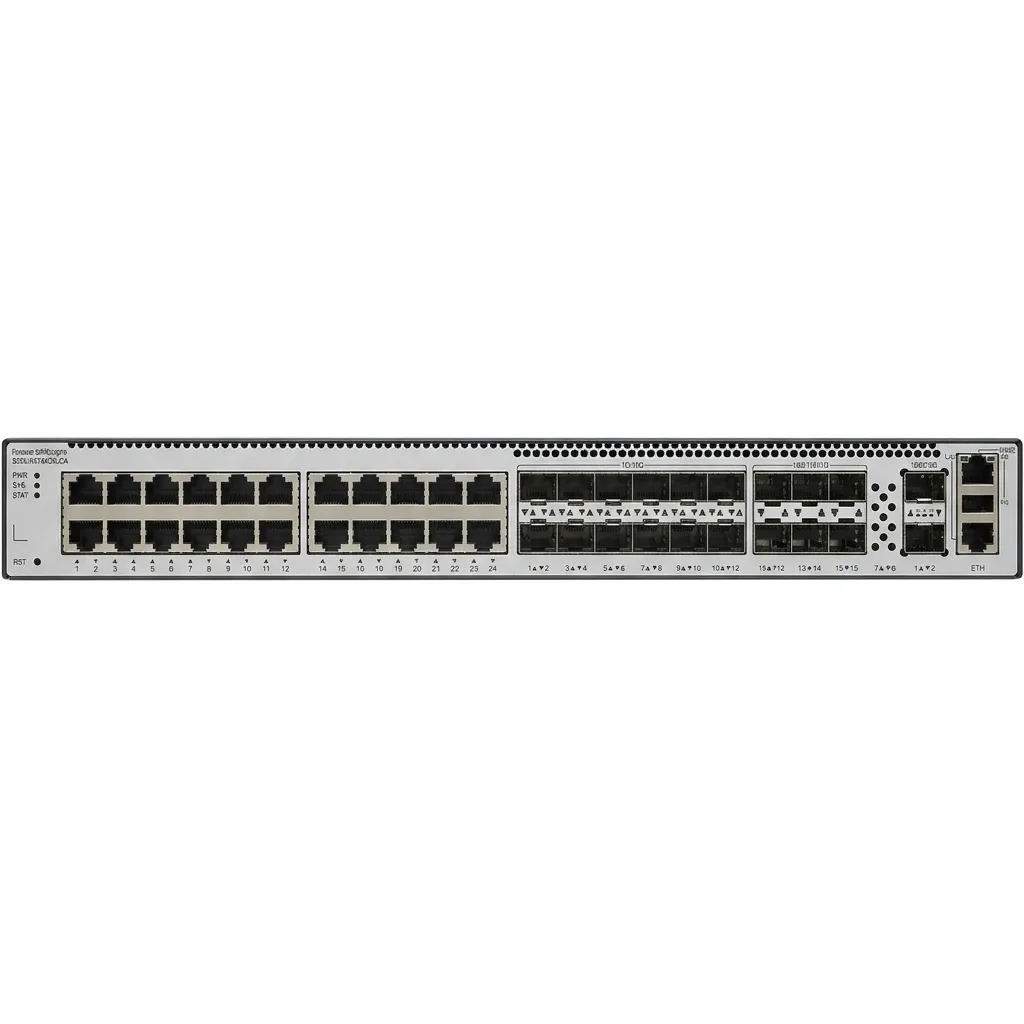

| Fixed Ports | • 24 x 10/100/1000BASE-T (RJ45) • 16 x 10GE SFP+ • 8 x 25GE SFP28 • 2 x 40GE/100GE QSFP28 |
| Switching Capacity | 1568 Gbps |
| Forwarding Rate | 1167 Mpps |
| Expansion Slot | 1x Reserved Card Slot (Supports HSIC-X08S000) |

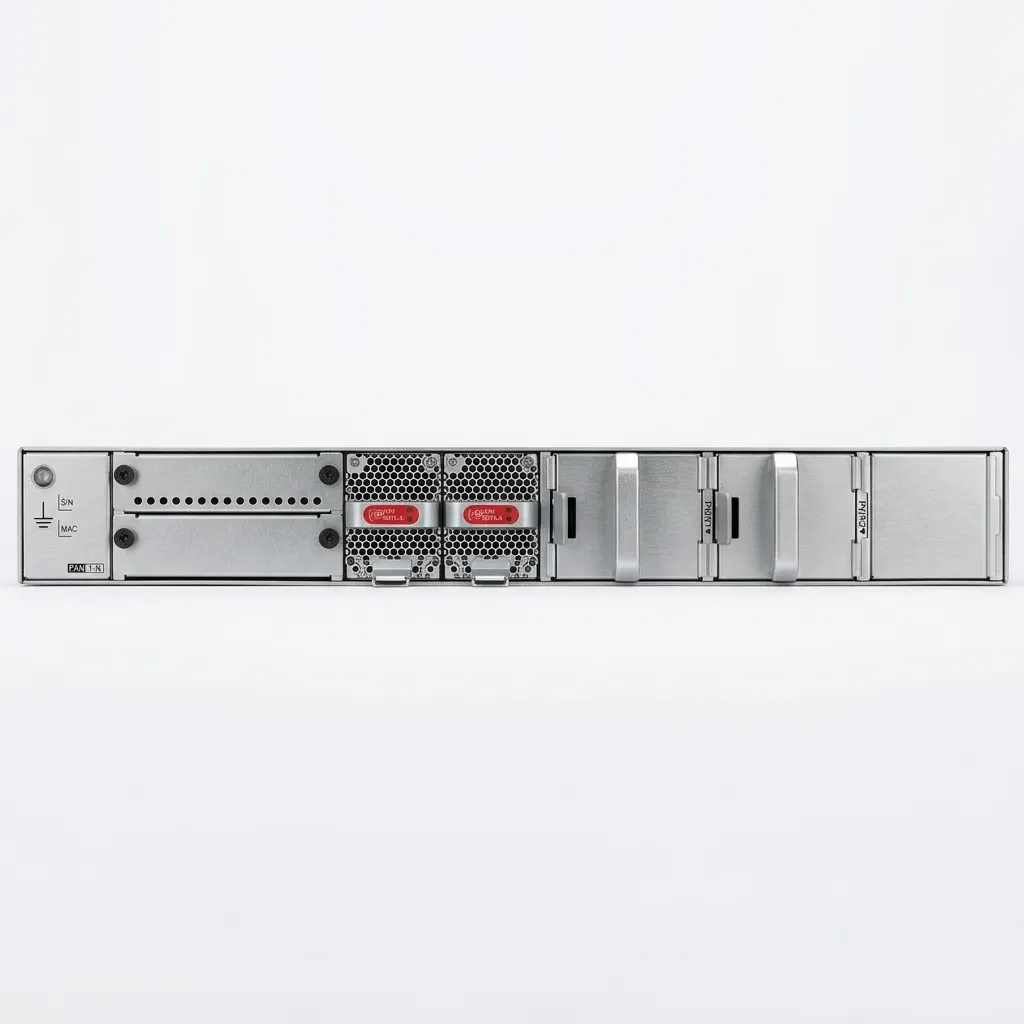

| Power Slots | 2x Pluggable Slots (1+1 Redundancy; AC/DC supported) |
| Dimensions (H x W x D) | 43.6 mm x 442.0 mm x 420.0 mm (1U) |
